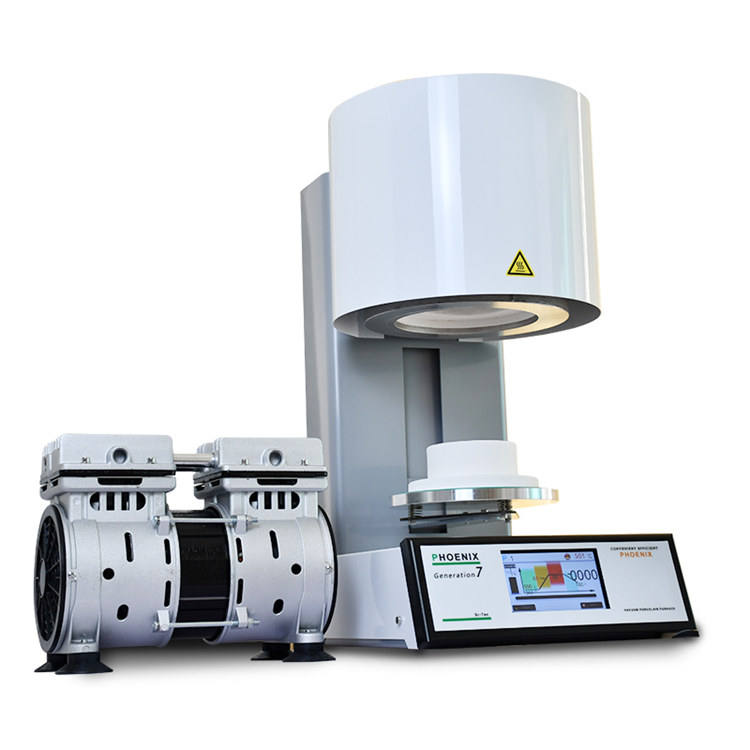

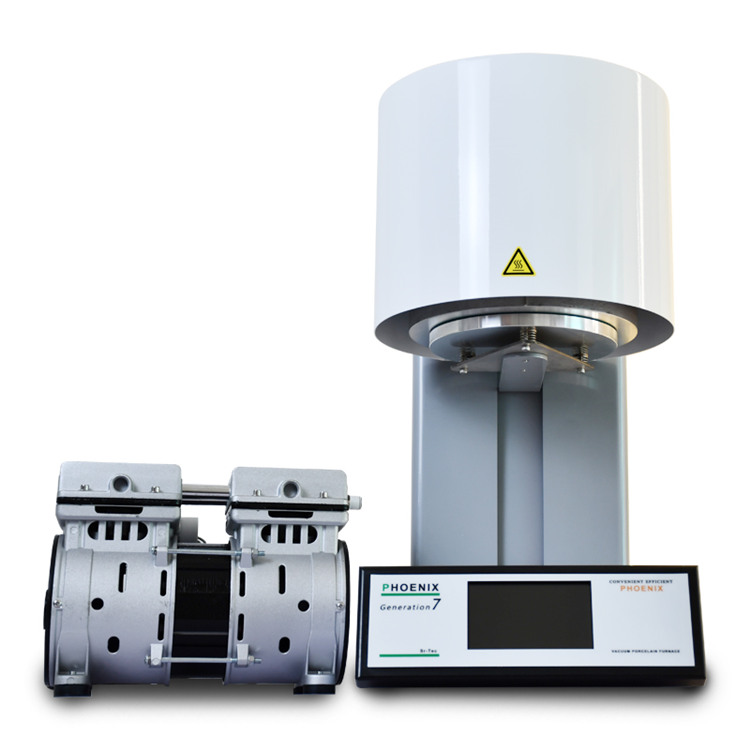

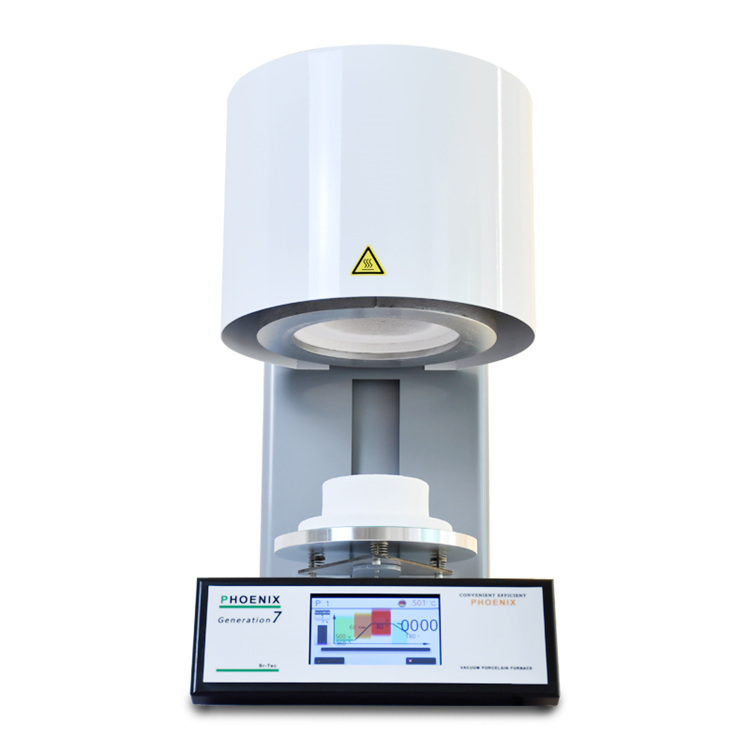

Dental Porcelain Furnace
Description:
Phoenix porcelain furnace applies auto lift and down tray with non-oil vacuum pump design, it is suitable for all kinds of ceramic powder materials,such as Vita In-Ceramics,Shanghai Jade Crowns,etc., and owns fellowing characteristics.
Specification:
|
Voltage |
110V/220C,50/60HZ |
|
Power |
Max.1.5KW |
|
Electric current |
14.5ampere@110V,7.0ampere@220V |
|
Max. Temperature |
1200C |
|
Working Temperature |
≤1150℃ |
|
Chamber size |
Diameter:90mm |
|
Heating rate |
0-150c/min |
|
Vacuum degree |
-98Kpa |
|
Thermocouple |
K type |
|
Heating element |
Fe-Cr-Al-Mo wire |
|
Packing size |
41*54*85cm( furnace);41*32*28cm(Vacuum Pump) |
|
Packing Weight |
25kg(Furnace),10kg(Vacuum Pump) |
Features:
1,High Quality of the function of temperature adjustment automatically,ensure the actually temperature error within +/-1
2,Easy to operate,compact size,the smallest size in the world at present.
3,Precision stepper motor drive,the smooth and jitter-free functioning,noise-free,speed programmable
4,Sprial quartz chamber of furnace
5,Temperature ajustment automatically before everything firing procedure
6,True color touch screen,the operation is simple and convenient.
7,USB port can easily connect to the computer service program.
8,Built in 99 program.
9,Optical status display
